Young HF-606-ER-1P

Aftermarket Replacement Heat Exchanger



MODEL NUMBER

Young Part Number: HF-606-ER-1P
Model Description: Fixed Tube Bundle 1 Pass Heat Exchanger
Replaced By: B-1206 One Pass



Construction & Materials:

Tubes: Copper
Hubs and Tubesheets: Brass
Shell: Brass
Baffles: Brass
End Bonnets: Cast Iron
Mounting Brackets: Steel
Gaskets: Nitrile Rubber / Cellulose Fiber
Nameplate: Aluminum Foil



Ratings:

Maximum Shell Pressure: 250 PSI
Maximum Tube Pressure: 150 PSI
Maximum Temperature: 350 F



Features:

Suitable for Water to Water, or Water to Oil Applications
Sea Water Service Materials Available
Options: 90/10 CuNi Cooling Tubes and Bronze Bonnets, NPT, SAE O-Ring, SAE Flange, or BSPP Shell Side Connections



To order an aftermarket replacement Young HF-606-ER-1P
fixed tube bundle heat exchanger please contact us: 1-888-226-8522


HF-606-ER-1P


HF-606-ER-1P is Young heat exchanger replaced by our model B-1206 One Pass, constructed with Copper tubes, Brass shell, and Cast Iron end bonnets.

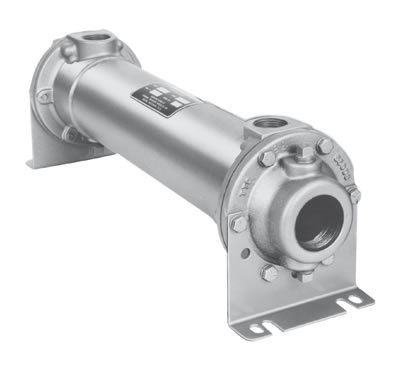

Note: Picture is an image of a stock unit and may not accurately represent the exact unit shown on this page.
HF-606-ER-1P

Replacements to Young HF-606-ER-1P
 B Series Dimensions

Quotes, Engineering & Ordering Information: Please contact us: 1-805-484-2992
